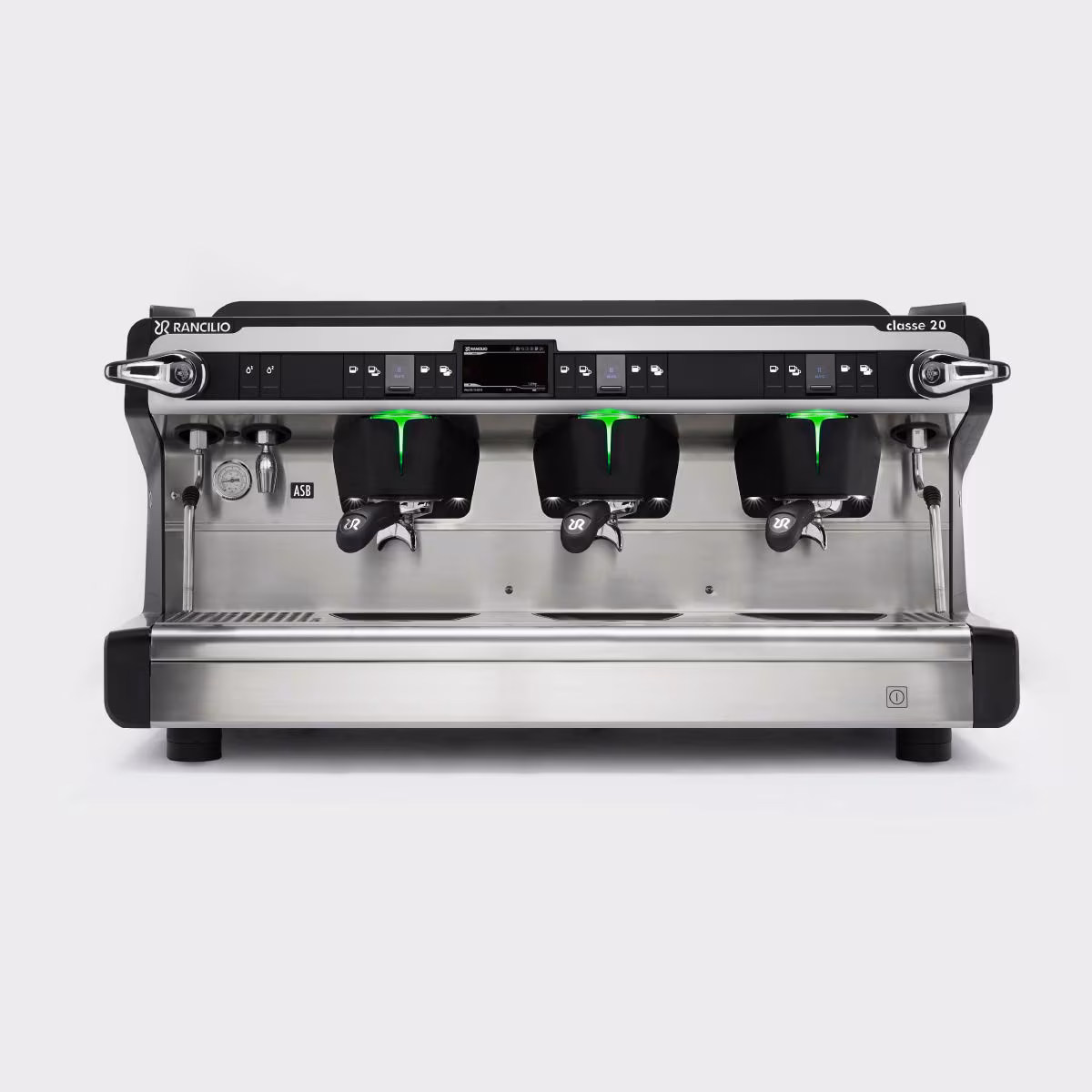

Classe 20 3-Grp ASB (220 V)

Built for high-volume bars that demand precision, speed, and repeatable quality. The Classe 20 3-Group ASB pairs Advanced Steady Brew thermal stability with a true multi-boiler architecture, giving each group its own micro-boiler and heating element. Baristas set independent brew temperatures per group from a 4.3″ per-group touchscreen, then steam and brew at full pace without watching the pressure gauge dip. Add the intuitive steam controls, programmable hot-water dosing, and smart maintenance tools, and you’ve got a workhorse designed to keep service flowing during the rush.

Why it’s great for busy cafés

• Unshakable temperature stability: micro-boiler + element at each group keeps water and group metal at target.

• Independent profiles per group: dial in different coffees side-by-side via the per-group touchscreen.

• Real steam power: large 16 L steam boiler sustains simultaneous milk, hot water, and extractions.

• Ergonomic & illuminated: cool-touch wands, C-lever control, under-group LEDs, and balanced portafilters reduce fatigue and speed workflow.

Brewing & temperature

• Advanced Steady Brew (ASB): stabilizes thermal mass and water path for consistent extractions shot-to-shot.

• Multi-boiler system: 3 × 150 ml micro-boilers (one per group) + independent elements for true thermal independence.

• Per-group control: set brew temperatures directly on the 4.3″ touch display at each group.

• Brass brew groups for thermal consistency and longevity.

Steam & milk

• C-lever steam valve: 25° rotation—up for latched open, down for momentary—fast, precise control.

• Cool-Touch steam wands: double-layer insulation helps prevent burns and reduces milk sticking.

• iSteam Pro (optional): automatic frothing wand with adjustable temperature & texture, up to 10 recipes, pre-purge, and left/right/both-side install options—ideal for high-volume cappuccino/macchiato programs.

Water & barista interface

• X-Tea hot-water wand: programmable dose and temperature from the interface.

• Per-group displays with clear status and quick adjustments.

• LED work lights under the groups; RGB accent lighting (Classe 20) for customizable aesthetics and quick machine-state feedback.

• Ergonomic, chrome-plated brass portafilters (up to 21 g) with balanced handles; customizable handles available.

• Max cup height: 80 mm / 3″; adjustable feet included.

Smart performance & energy

• Green ABM software: anticipates heavy loads and boosts heating to maintain pressure/temperature; can pause hot-water dispense to protect steam pressure; optional reduced-power mode (≈ ⅔) when supply is limited; improves steam output with iSteam Pro.

• Auto ON-OFF scheduling: set automatic start/stop times by day to be hot when the doors open and save energy after close.

• Connect (optional): Rancilio’s IoT platform for fleet monitoring, KPIs, and remote insights.

• Snap&Share app: scan a QR to log settings, track maintenance, and register for warranty.

Cleaning & maintenance

• Easy Clean: automated group cleaning cycles with scheduling, optional lockout until cleaning, and cycle history.

• Advanced Diagnostics: on-screen Service menu tests components, shortens troubleshooting, and minimizes downtime.

• USB port for updates and quick settings management.

Capacities & utilities

• Main steam boiler: 16 L

• Coffee micro-boilers: 3 × 150 ml

• Water supply: fixed connection (plumb-in)

• Hydraulic circuit: commercial-grade

Power

• Voltage & frequency: 220–240 V~/380–415 V3N~, 50–60 Hz

• Load: 6.56–6.73 kW (220–240 V~, 60 Hz)
  (Check local electrical code and supply; dedicated circuit recommended.)

Dimensions & weight

• Width: 1015 mm / 39.96″

• Height: 550 mm / 21.65″

• Depth: 568 mm / 22.36″

• Weight: 85 kg / 187.39 lb

Options & add-ons

• Cup warmer

• Pods & Caps kit

• Connect IoT
